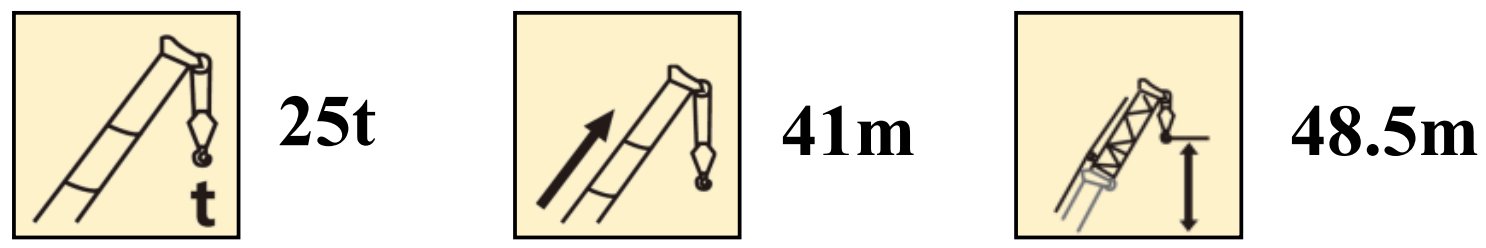

GRÚA SOBRE CAMIÓN QY25K5D

	Chassis
Frame	Designed and manufactured by XCMG,it  is made of high strength steel with fully covered walking surface and anti-torsion box-typed structure.

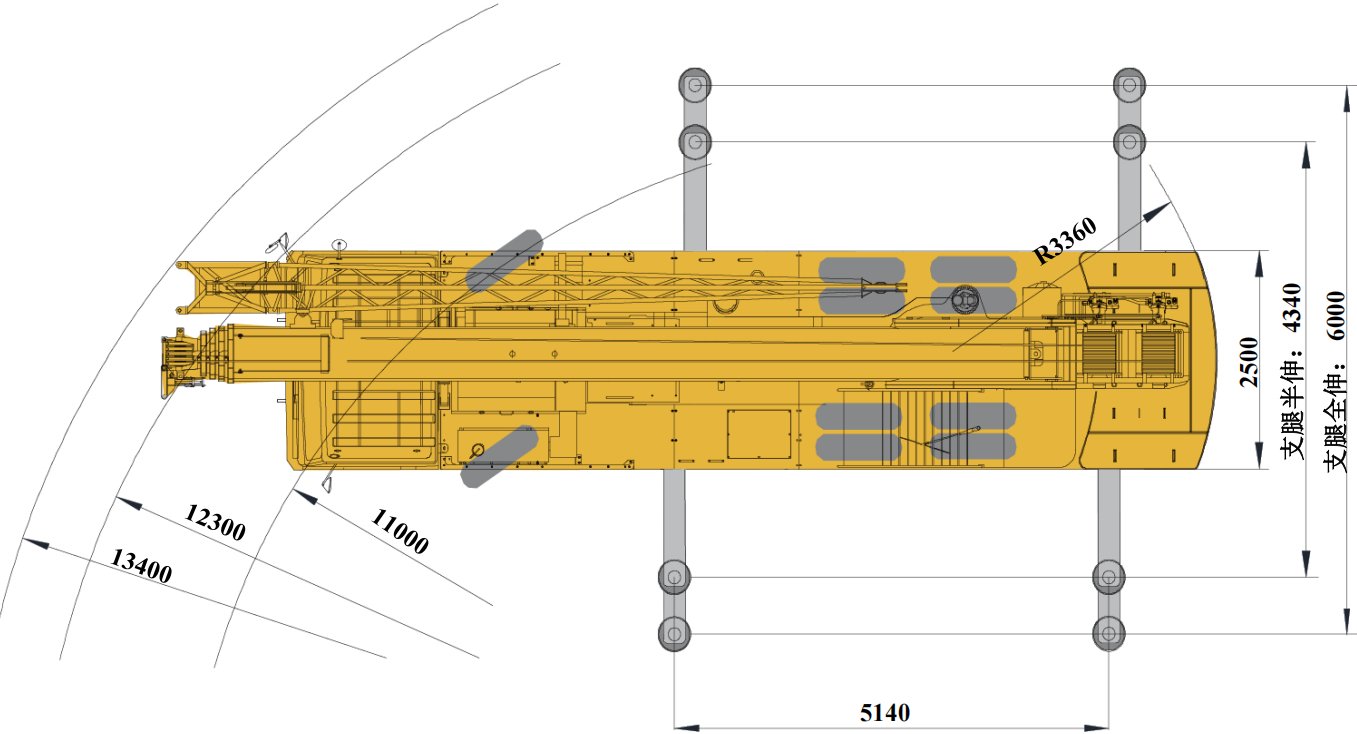

Outriggers	Four outriggers arranged in H-shape are hydraulically controlled by control levers.There is an outrigger control station located at each side of the chassis,and there is a level gauge on each control station.The outrigger movements can be simultaneously or separately controlled at any side of the chassis.A fifth jack is available.Each jack cylinder is equipped with a double-way hydraulic valve.Outrigger float diameter:φ400 mm Reaction force of outrigger at max.lifting load:310 KN
Engine	SC9DF300.1Q5,in-line,6-cylinder,water  cooled,electric control diesel engine,made by Shanghai Diesel Engine,with rated power of 221kW/2200 rpm and max.torque of 1250 Nm/1400 rpm,compliant with China Vemission standard. Fuel tank capacity:240L.
Transmission	FAST mechanical control,8 speed transmission with synchronizers
Axles	High strength axles made by Hande,2nd axle and 3rd axle for driving
Suspension	Front suspension:longitudinal leaf spring balanced suspension,with cylindrical shock absorber.Rear suspension:rubber suspension with V-type push rod
Tires	10 tires and 1 spare tire.Single tire installed on the front axle,double-tire installed on the middle and rear axles.
Braking system	Tire specifications:11.00R20或11.00-20 Service brake:double-circuit air pressure brake,acting on all wheels;Parking brake:spring-loaded brake,acting on the wheels of axles 2~3. Auxiliary brake:engine exhaust brake.
Steering system	Mechanically steering mechanism with a hydraulic booster.
Driver's cab	Full-dimension cab,two passengers are allowable.It is equipped with adjustable seats,steering wheel,safety glass,3 wipers,electrically operated door window lifters,glove box and air conditioning.
Electrical system	24V DC,two sets of 12V battery in series. Generator:28 V-70 A Vehicle-mounted GPS communication terminal

	Superstructure
Frame	Designed and manufactured by XCMG,made of high strength  steel.
Hydraulic system	The chassis engine drives the constant displacement gear pump to realize hoisting,luffing and telescoping operations.Load sensing proportional multi-way change valve with impact resistance valve and cavitation-proof valve integrated;air-cooled hydraulic oil radiator. Oil tank capacity:474L.
Control system	Pilot hydraulic control is used for controlling the superstructure.Allcrane movements are controlled by hydraulic pump and proportional valve through two control levers at left and right sides
Mainwinch system	Hydraulic control is used for speed regulation.The system is driven by a hydraulic motor through a planetary gear reducer,with a normally closed brake,a balance valve and a grooved drum equipped.
Auxiliary winch	Hydraulic control is used for speed regulation.The system is driven by a hydraulic motor through a planetary gear reducer,with a normally closed brake,a balance valve and a grooved drum equipped.
Slewing system	Four-point contact-ball slewing ring is driven by the planetary gear reducer of  slewing mechanism,which is driven by a hydraulic motor,and may continuously slew 360°.Power control and free slewing function as well as stepless speed regulation are available.There is a horn switch fitted on the slewing control lever.
Luffing system	A front support double-acting hydraulic cylinder is equipped for luffing operation,with a balance valve fitted.
Operator's cab	Operator's cab is designed according to ergonomics with outward-open door and adjustable seat It is equipped with safety glass,roof protective guardrail,sun visor for windshield and heater &air conditioner.
Safety devices	Hydraulic balance valve,hydraulic relief valve,double-way hydraulic valve,LMI,lowering limiter for preventing wire rope from over-releasing,anti-two block at boom head for preventing wire rope from over-winding and tri colored light bar.

	Boom system
Boom	5-section boom with U cross-section,welding structure double-cylinder plus ropes telescoping system. Boom length:10.5m～41m.
Single top	Installed at the boom top,used for single line operation Its lifting performance is the same with that of boom, but the max.lifting load can not exceed 2.8t.
Fixed jib	Two-section lattice jib,welded structure.Three offset angles of 0°,15°and 30°.Fixed jib length:8.3m.

Peso

	1	2	3	Total weight
Axle
t	7.3	12.6	12.6	32.5

	Parts of line	Weight (kg)	Dimensions(mm)	Remarks
Hook block
25t	10	297	417×450×1175	Single hook,Standard
2.8t	1	55	236×236×503	Single hook,Standard

Velocidades de trabajo

11.00R 20/11.00-20	2.5～80	40%

	Working speed	Max.single line pull	Rope diameter/length
Operation mechanisms
	m/min,单绳，第四层 0-125         m/min,single line,4th layer	28kN	14 mm/180 m
	m/min,单绳，第四层 0-125         m/min,single line,4th layer	28 kN	14mm/105m
	0-2.5 r/min
	Approx.38s for boom luffing from -2°to 80°
	Approx.93s for boom extending from 10

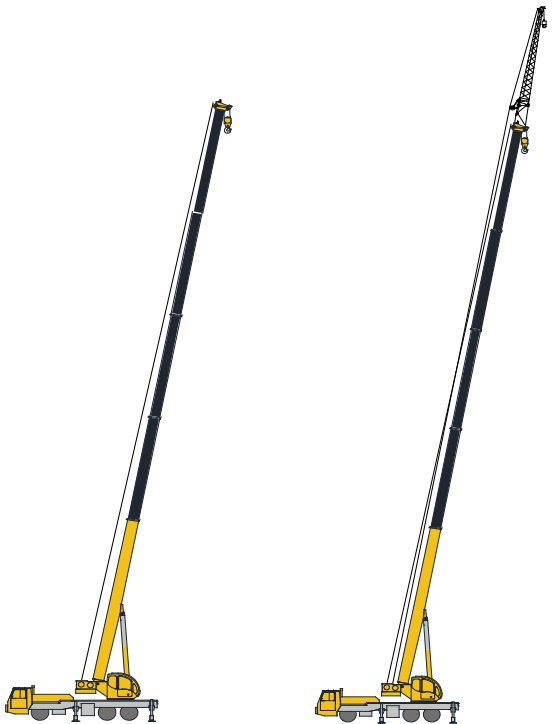

Pluma telescópica: T: 10,5~41 m

Plumín: T: 10,5~41 m J: 8,3 m

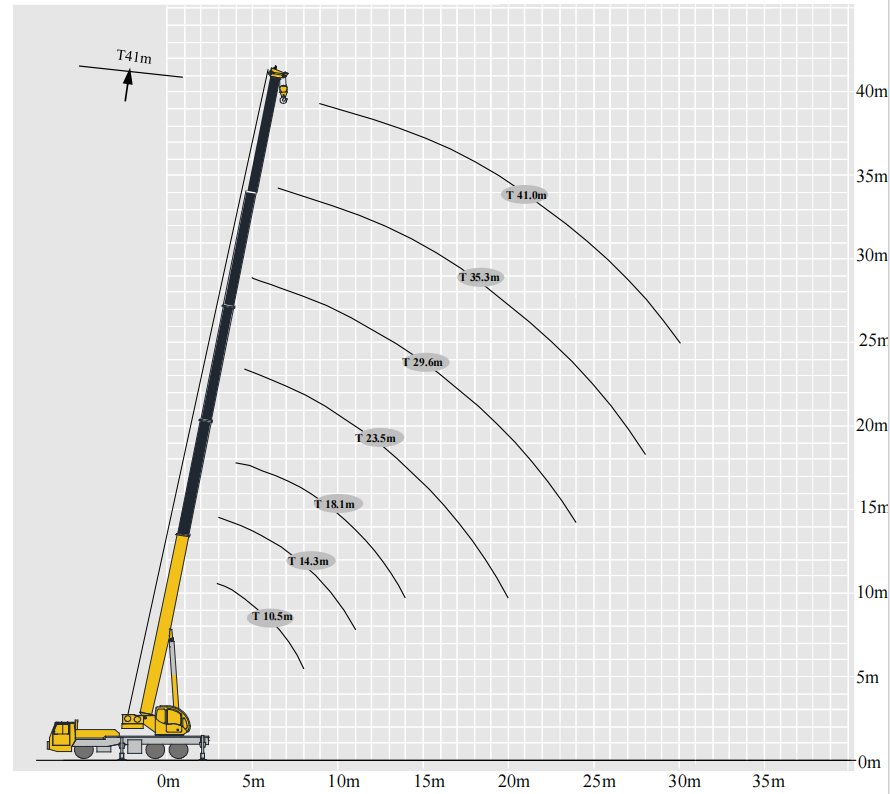

Elevando alturas

Capacidades de elevación

				23.8m	29.6m	35.3m	41.0m
	10.5m	14.3m	18.1m
3	25000	25000						3
3.5	25000	25000						3.5
4	24500	24600	19500					4
4.5	22800	22600	19500	16600				4.5
5	20500	21200	18600	16500	13000			5
5.5	18500	19200	17300	15500	12800			5.5
6	16800	17300	16000	14500	12800			6
6.5	15600	15800	14800	13500	12500	9000		6.5
7	14500	14500	14200	12900	11500	9000		7
8	11900	11400	11100	11300	11000	8900	6600	8
9		9200	8900	9800	10100	8200	6500	9
10		7600	7300	8100	8600	7600	6200	10
11		6400	6000	6800	7300	7000	5800	11
12			5000	5800	6200	6500	5600	12
13			4200	5000	5400	5700	5200	13
14			3500	4300	4700	5000	4900	14
15				3700	4100	4400	4400	15
16				3200	3600	3900	4050	16
18				2400	2800	3000	3250	18
20				1800	2100	2400	2600	20
22					1600	1900	2100	22
24					1200	1400	1650	24
26						1100	1300	26
28						850	1000	28
30							750	30
32							550	32

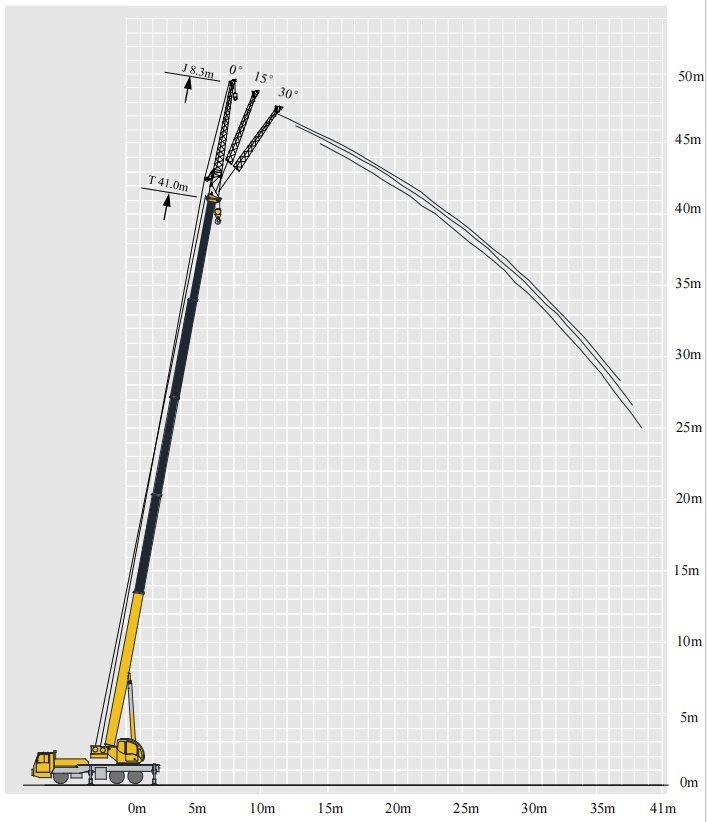

Elevando alturas

Capacidad de levantamiento

	0°	15°	30°
78	2800	2500	1900	78
75	2800	2400	1750	75
72	2750	2200	1700	72
70	2650	2100	1600	70
65	2100	1800	1500	65
60	1450	1350	1400	60
55	950	900	900	55
50	600	550	500	50
45	350	300	300	45

Nota

• Las cargas nominales totales indicadas en las tablas de carga nominal corresponden a la capacidad máxima de elevación cuando la grúa está instalada sobre terreno firme y nivelado, incluyendo el peso del gancho y las eslingas. El peso de los dispositivos mencionados debe restarse para calcular correctamente el peso de la carga.

• El radio de trabajo mostrado en las tablas de carga nominal es el radio cuando la carga se eleva del suelo, e incluye la deflexión de la pluma con carga.

• Solo se permite realizar operaciones de elevación cuando la fuerza del viento es inferior a grado 5 (velocidad instantánea del viento de 14,1 m/s y presión del viento de 125 N/m²).

• Antes de iniciar la operación de elevación, el operador debe conocer el peso de la carga a elevar y su rango de trabajo, y seleccionar las condiciones de trabajo adecuadas. Nunca opere la grúa más allá del límite indicado en la tabla. Utilice el valor inferior de la tabla cuando la longitud de la pluma o el radio de trabajo se encuentren dentro del rango de valores.

• Respete el límite del ángulo de la pluma. Nunca opere la grúa con un ángulo de pluma superior al límite recomendado, incluso sin carga. De lo contrario, la grúa volcará.

• La longitud de la pluma indicada en las tablas de carga nominal debe coincidir con el código de secciones telescópicas de la pluma.

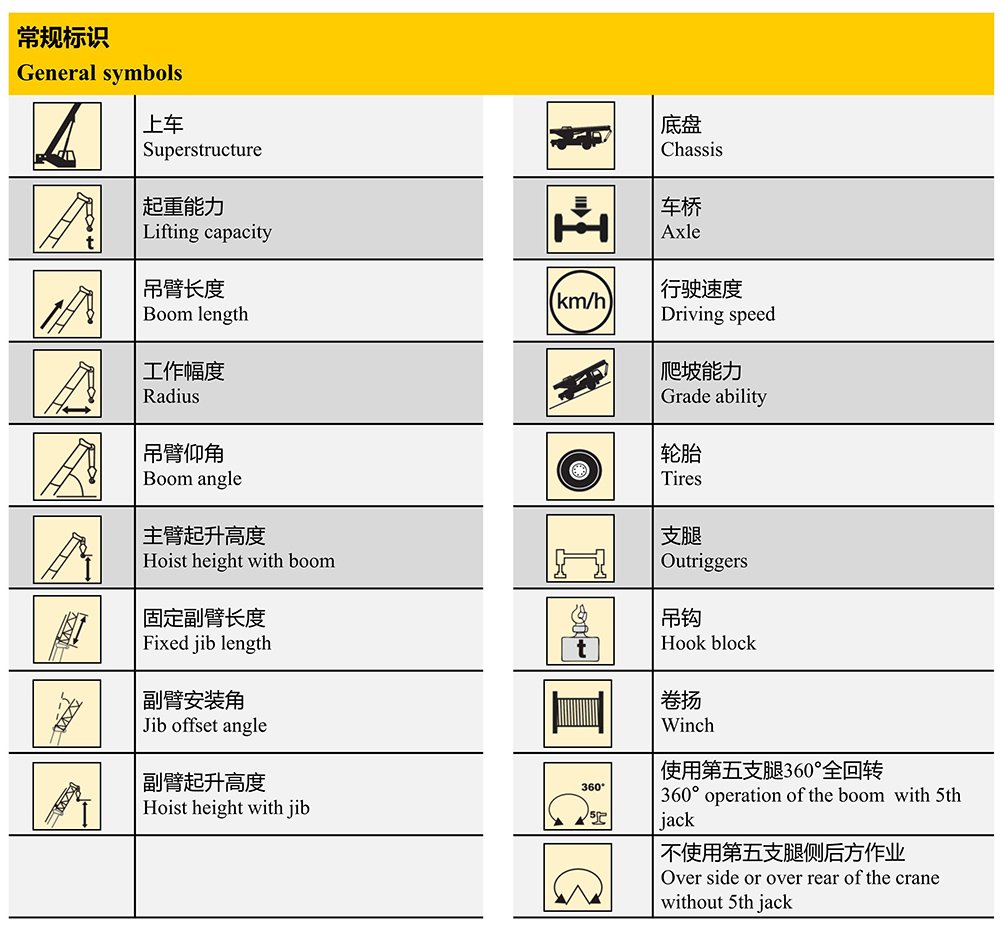

Descripción de los símbolos

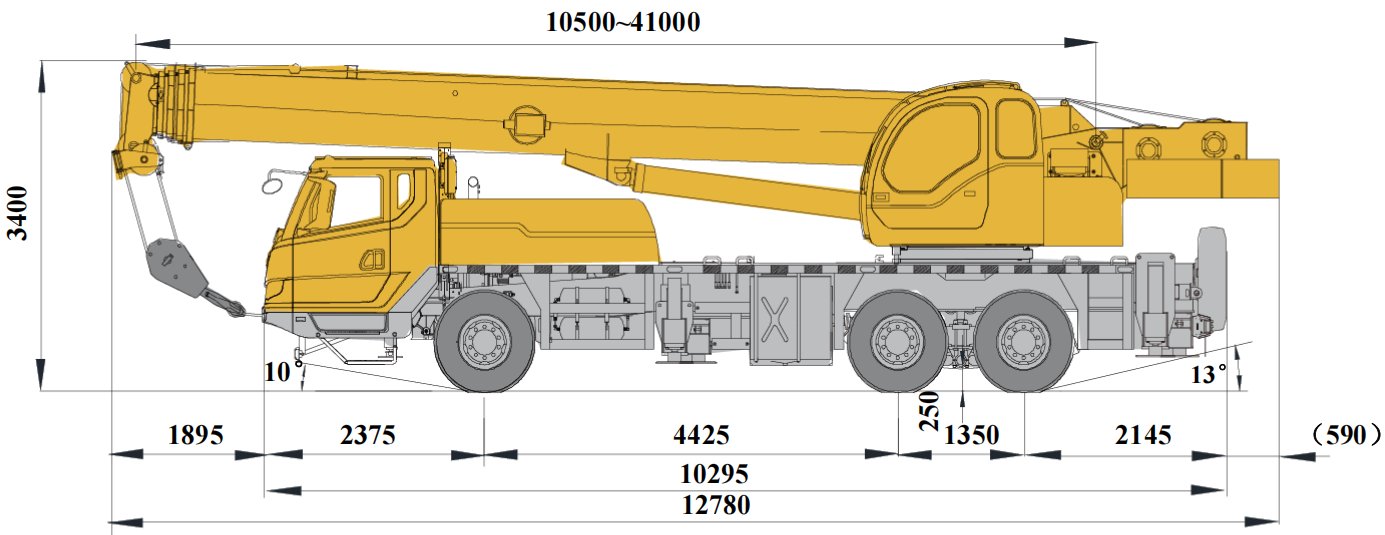

Plan de transporte
